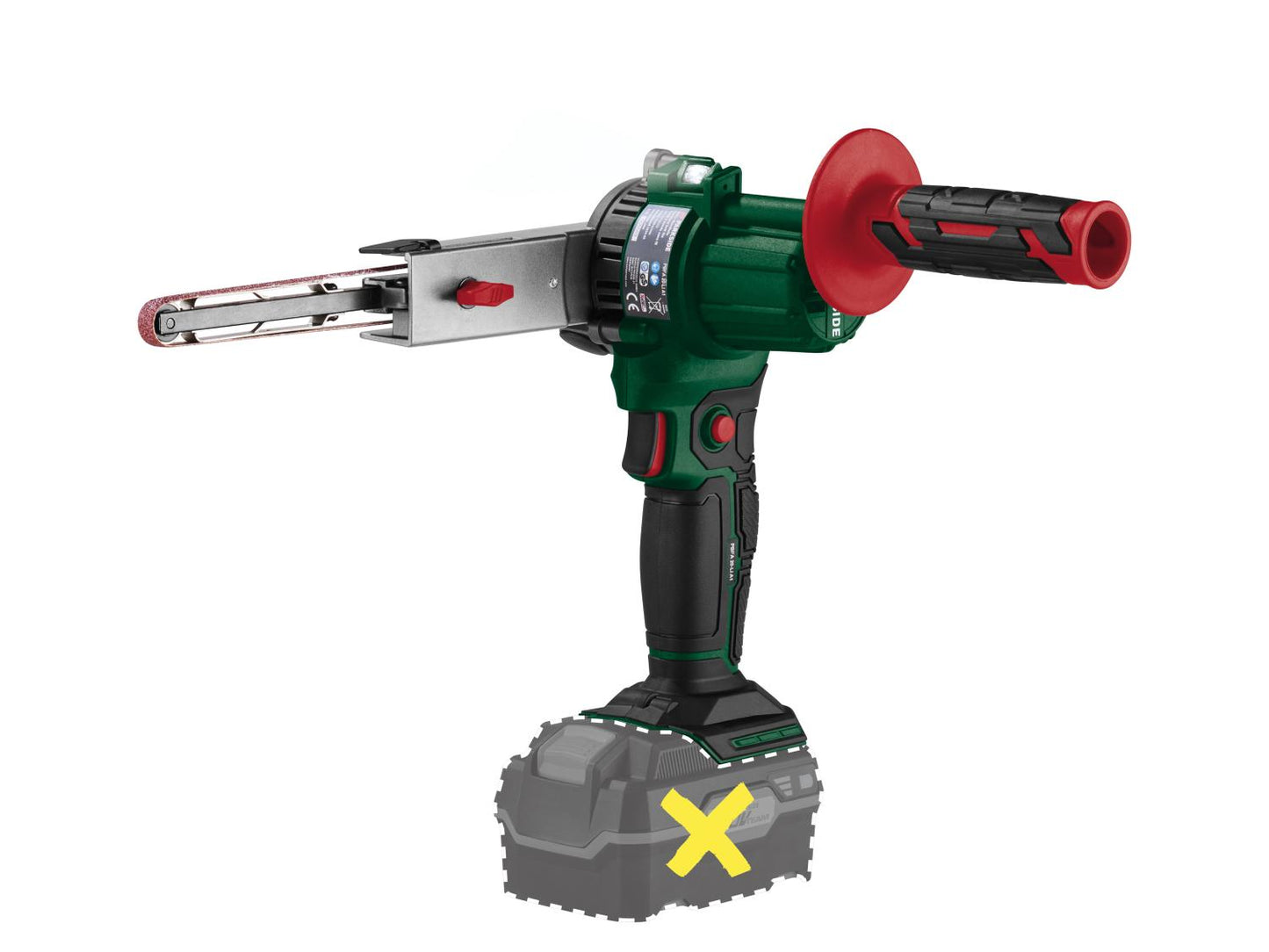

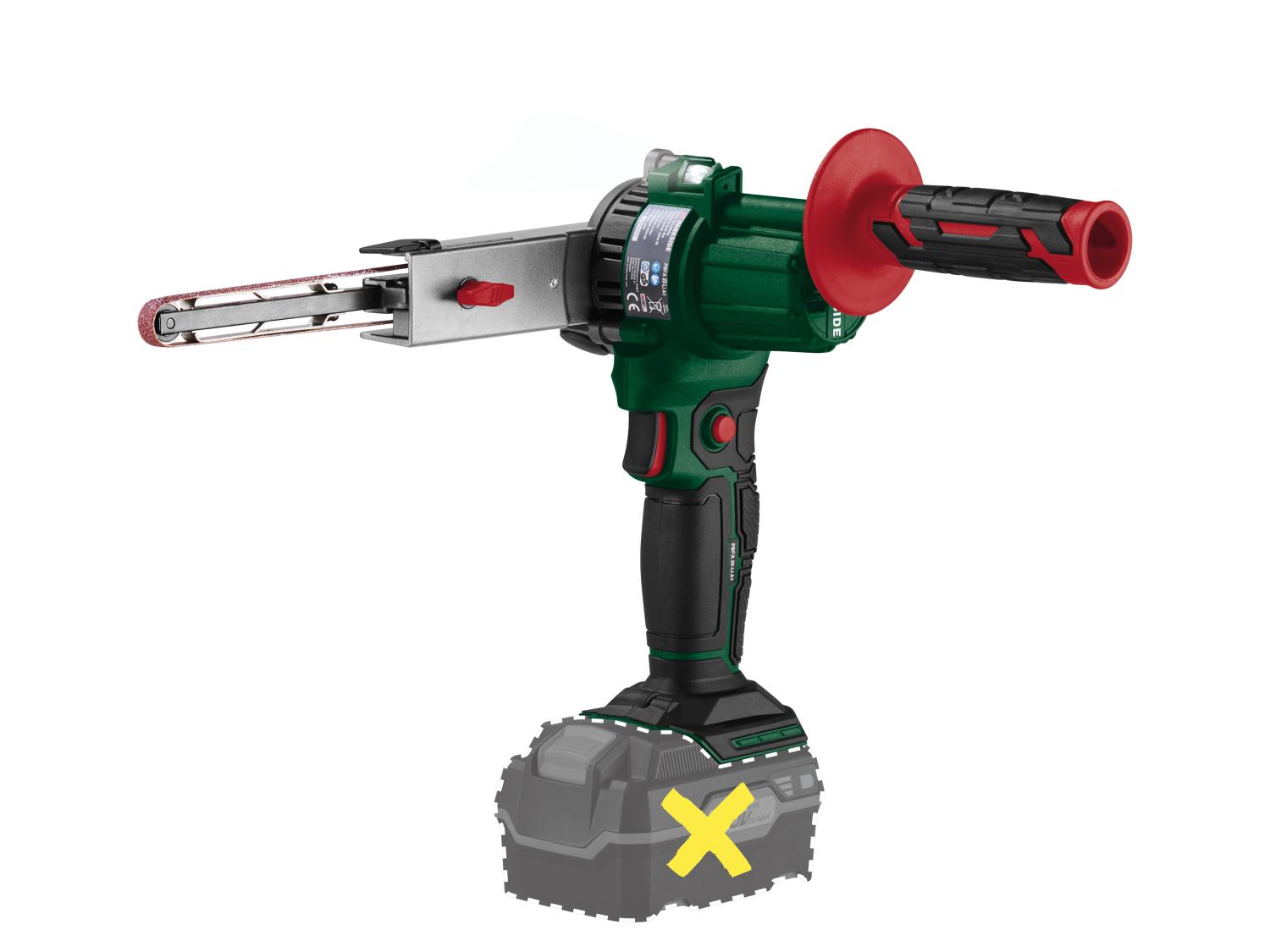

PARKSIDE® 20V Cordless Belt Sander PBFA 20-Li A1

Technical overview

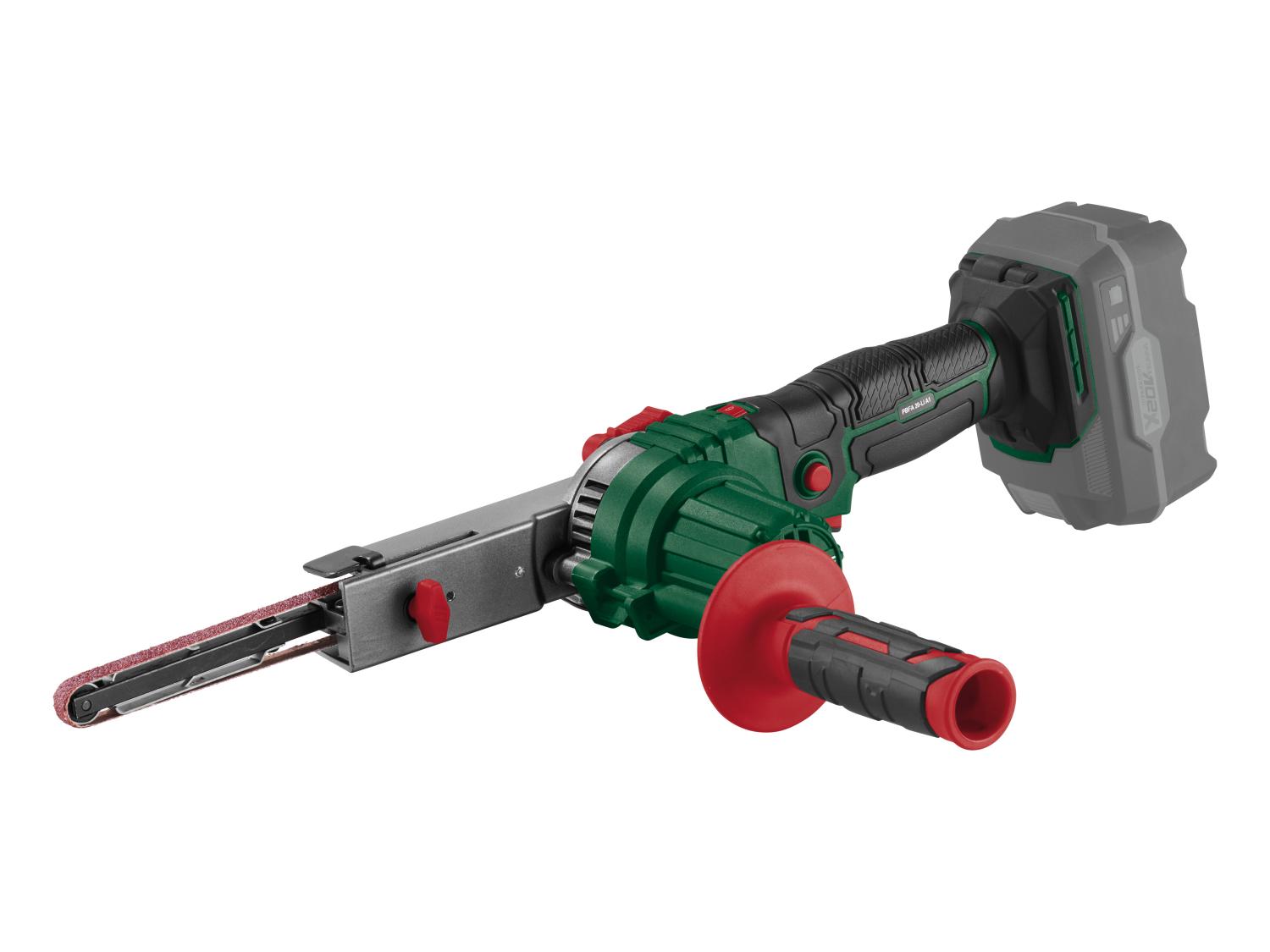

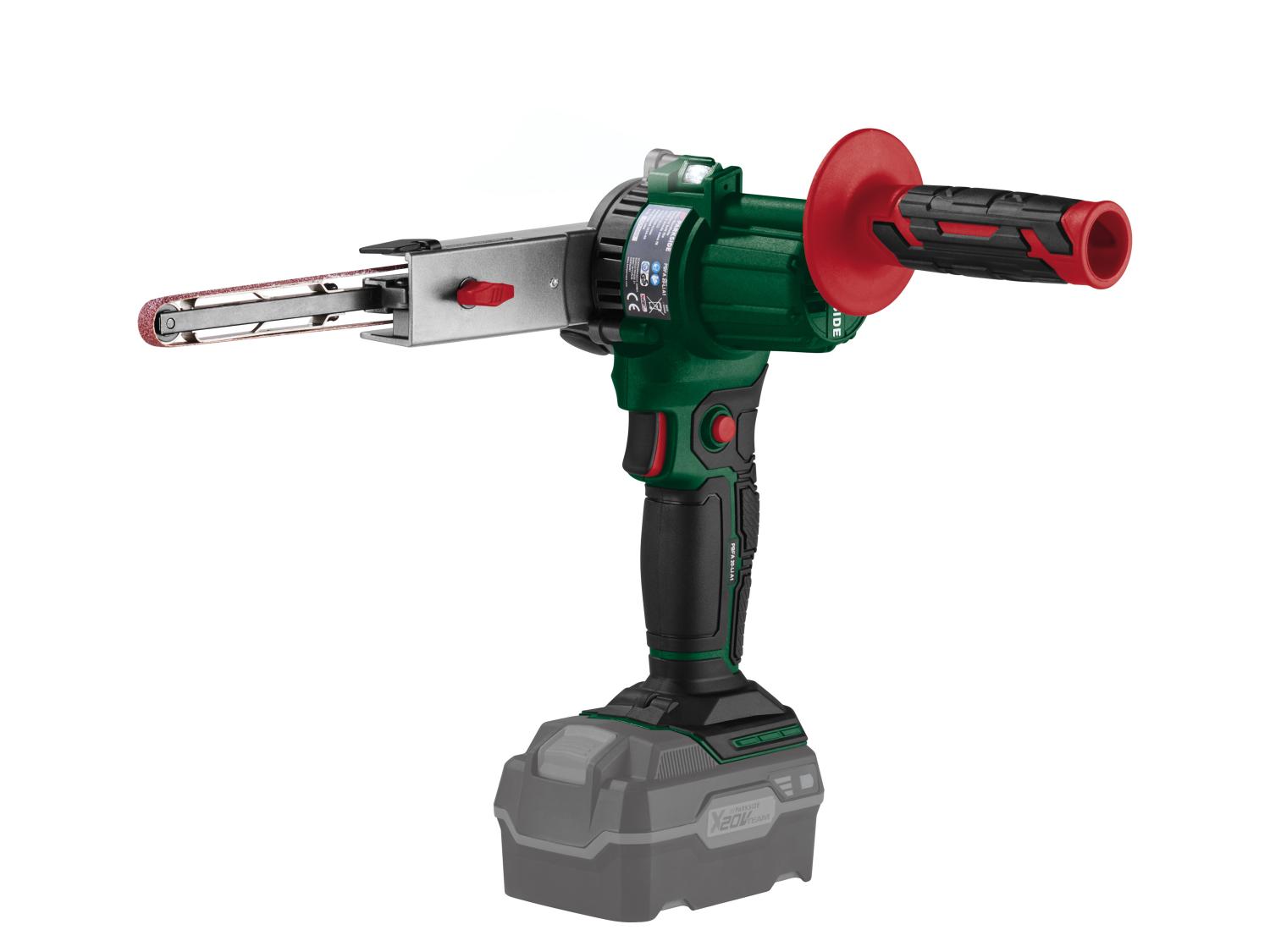

The PARKSIDE® 20V Cordless Belt Sander PBFA 20-Li A1 is a battery-powered precision sanding tool designed for wood, plastic, metal and painted surfaces. It uses a narrow 9 x 533 mm abrasive belt running at 600–1700 m/min, while the sanding arm can be positioned between -5° and 90° for access to confined areas.

Key features
▸ Variable belt speed from 600 to 1700 m/min

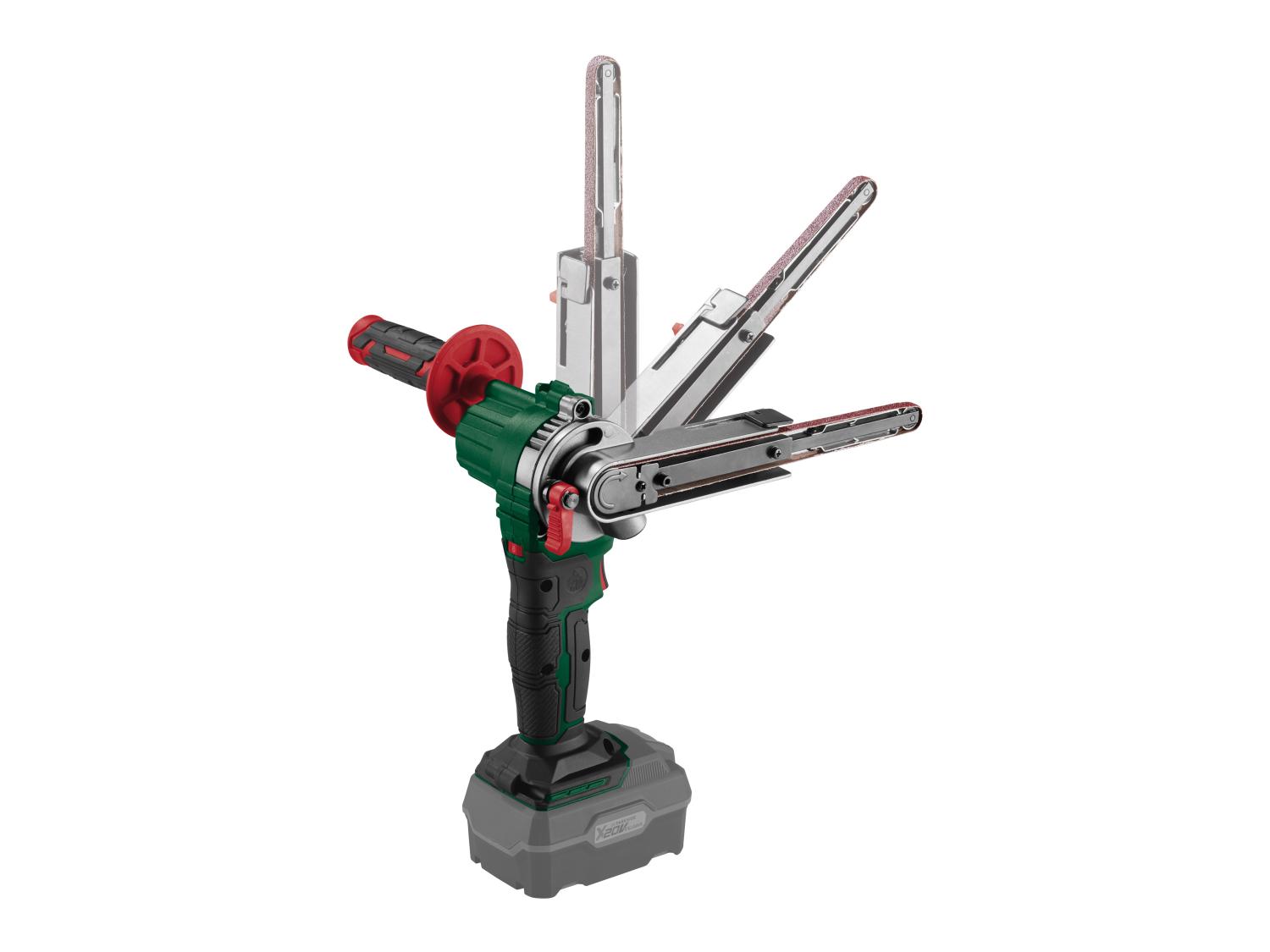

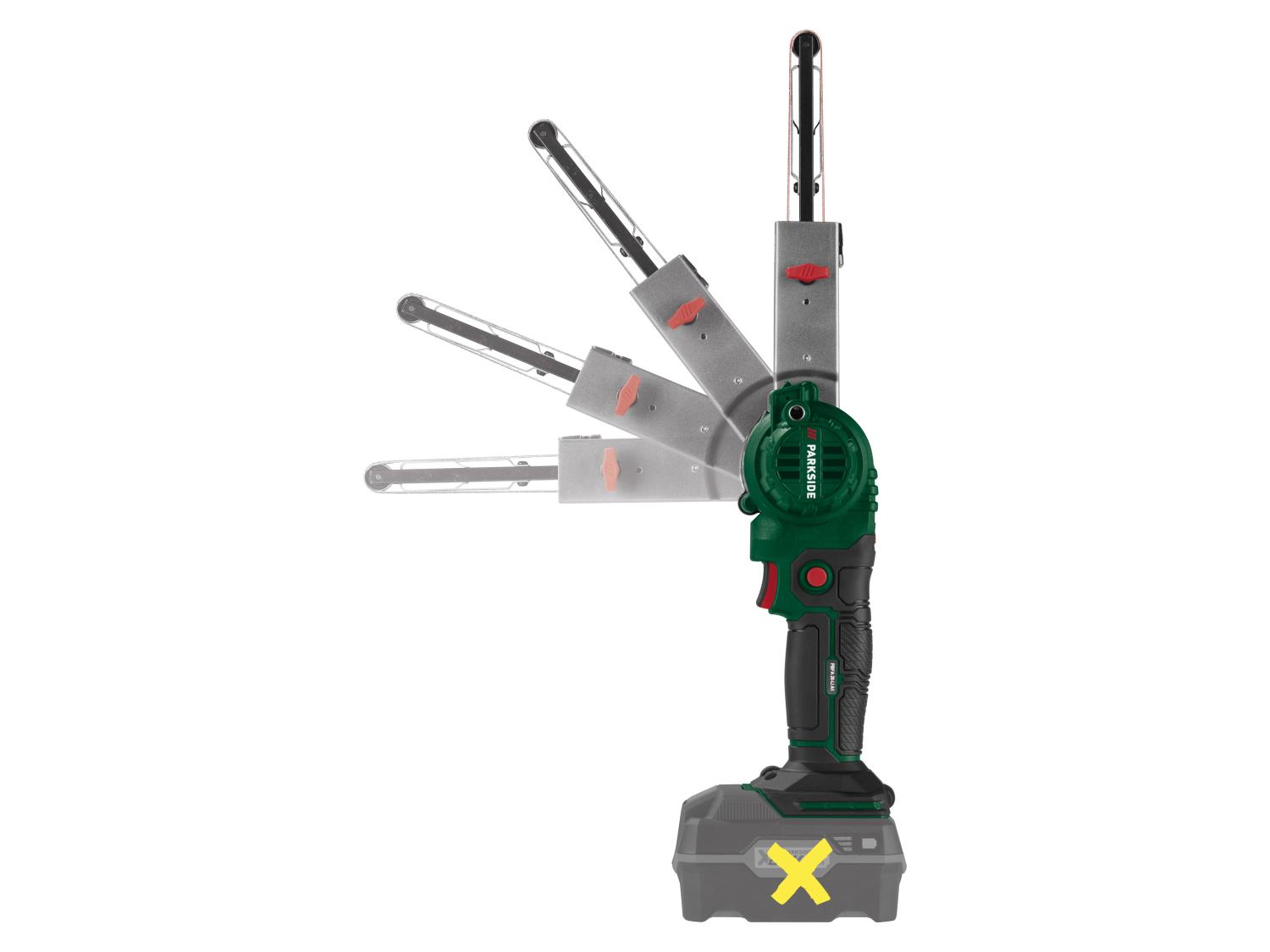

▸ Sanding arm adjustable from -5° to 90°
▸ Manual belt tracking adjustment

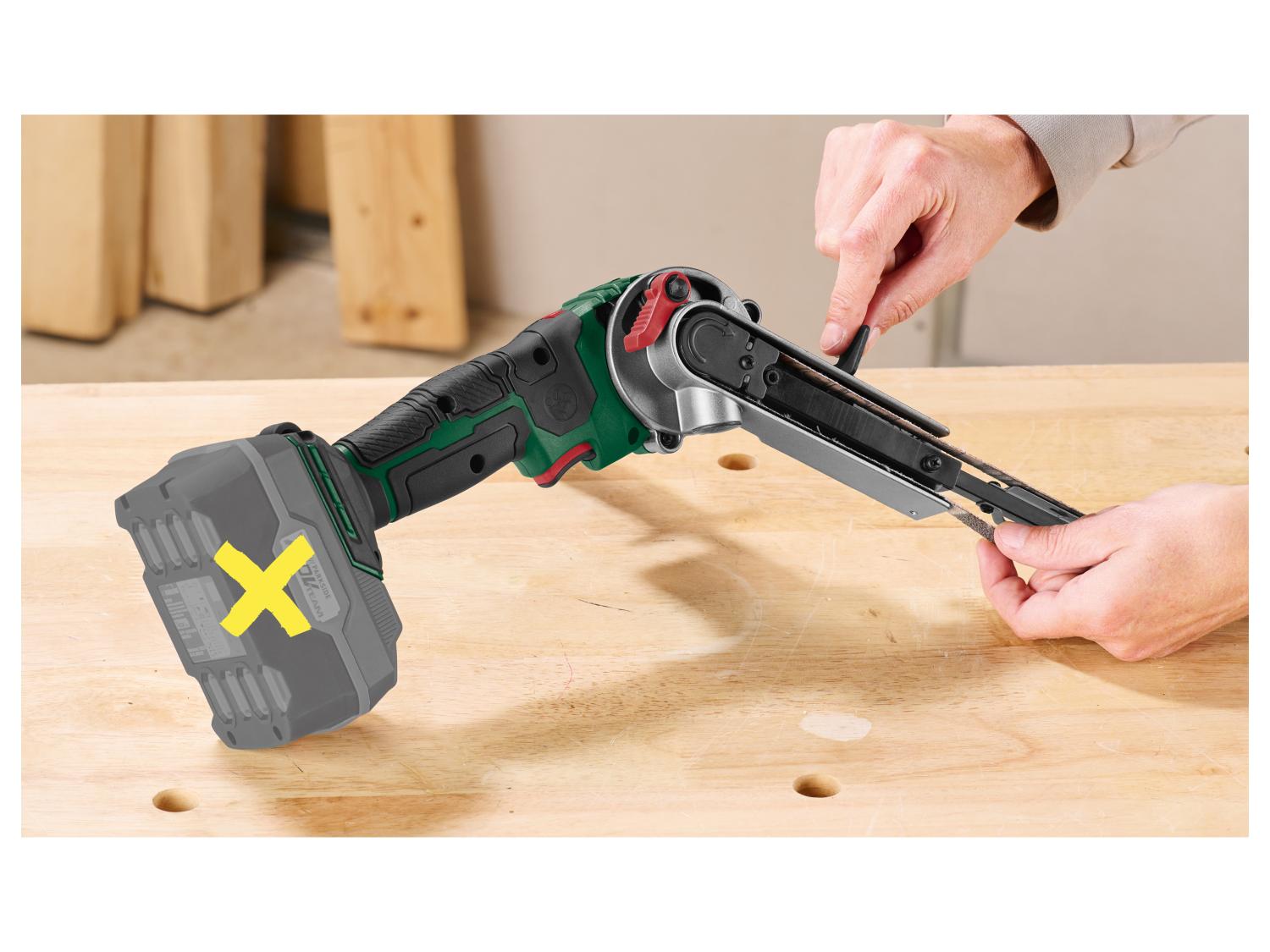

▸ Tool-free abrasive belt changes
▸ Lock-on switch for continuous operation
▸ Integrated LED work light
▸ Additional handle for more secure control

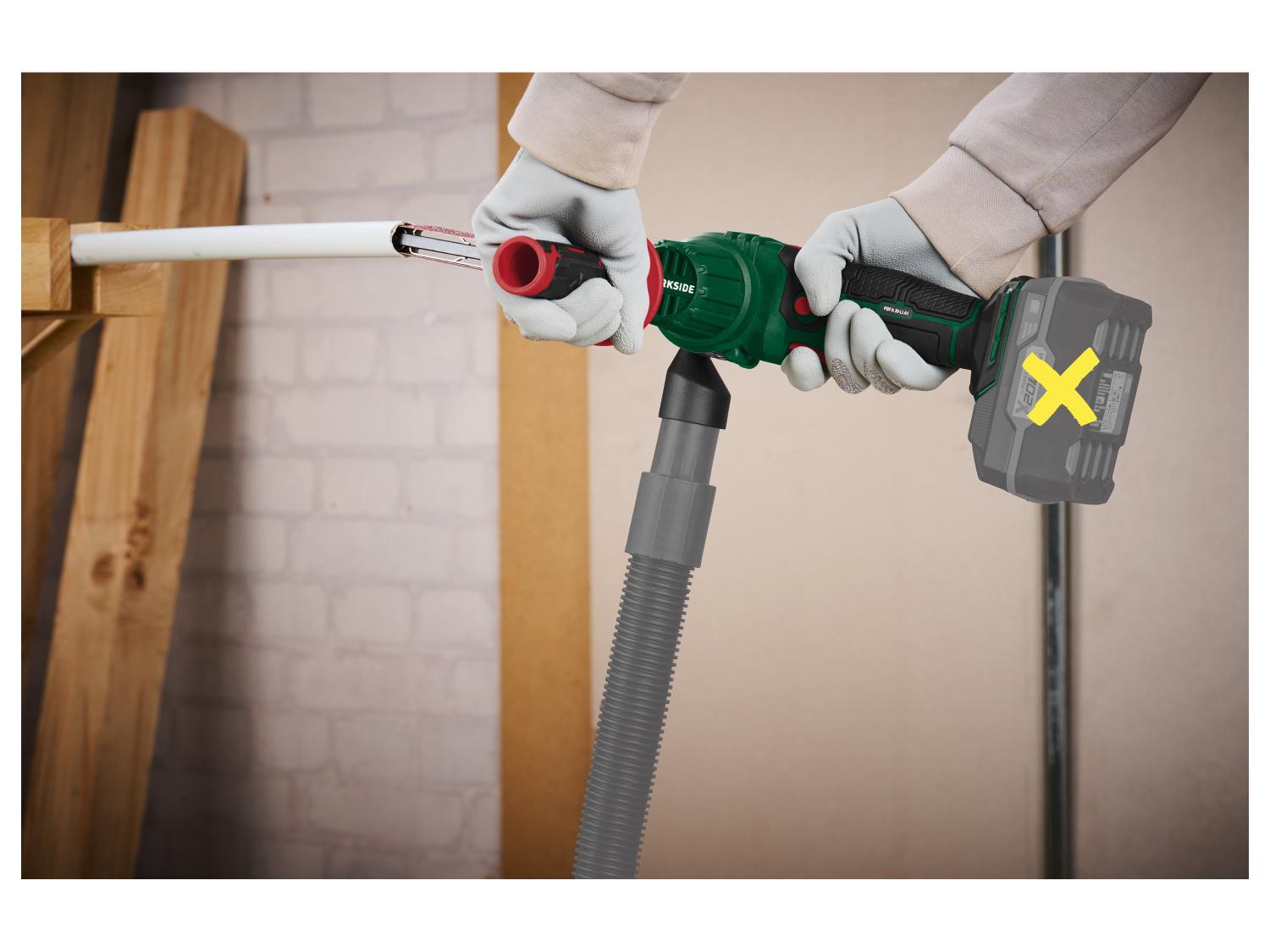

▸ External dust extraction adaptor
▸ Compatible with PARKSIDE X 20 V Team batteries
▸ Recommended 20 V / 4 Ah battery

How it works and what it is for

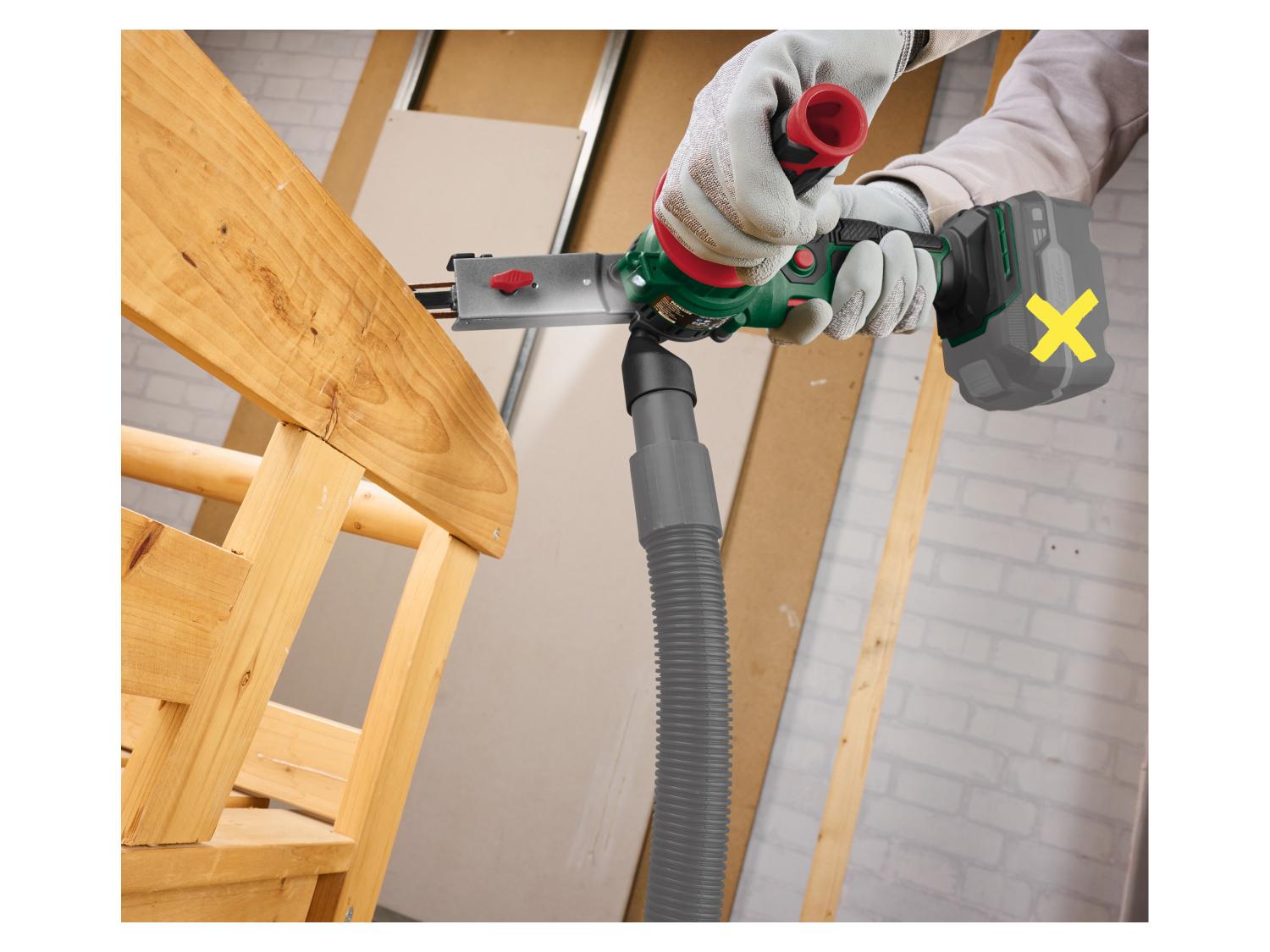

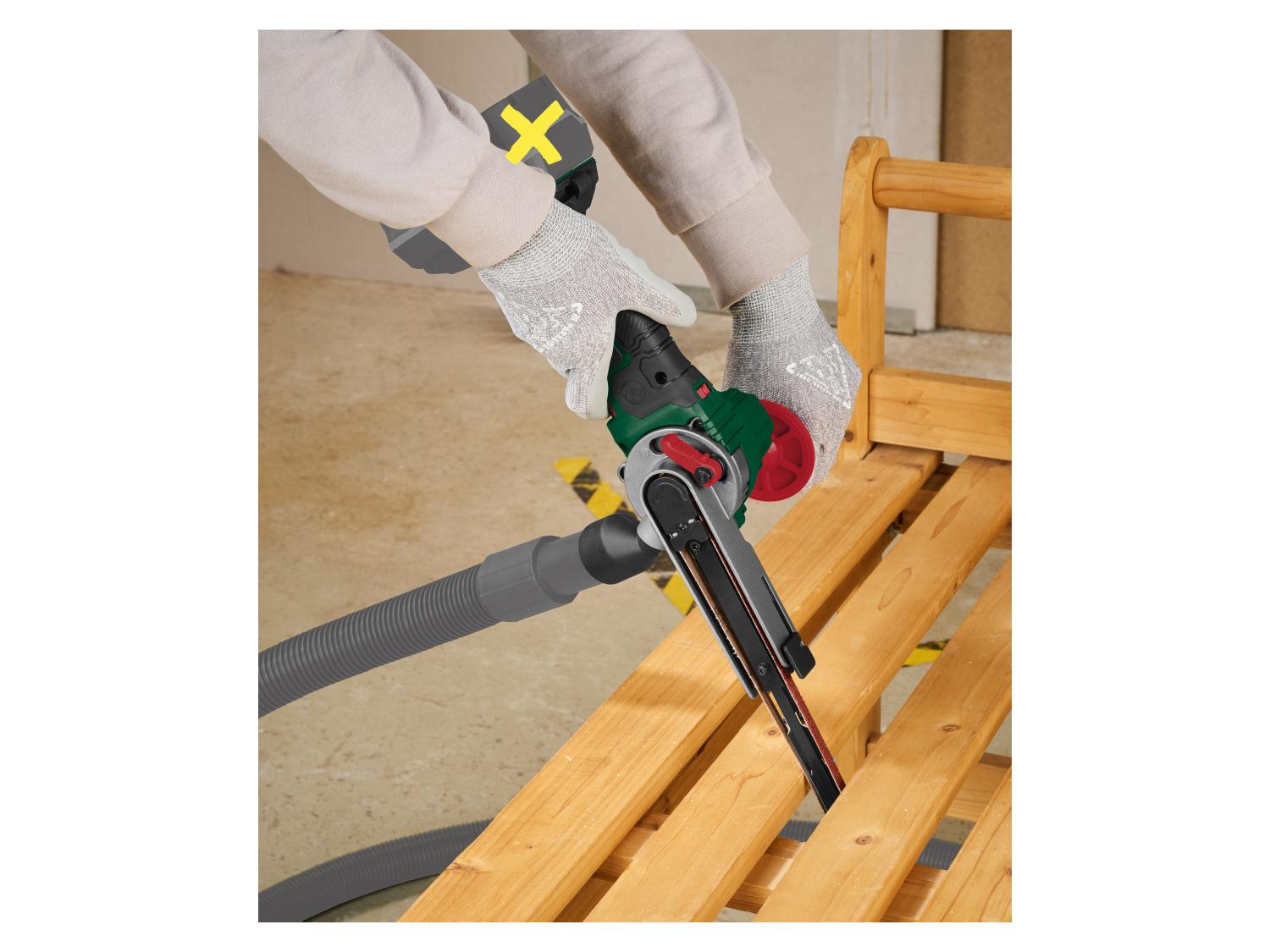

The narrow abrasive belt rotates around the sanding arm to remove material from edges, openings and awkward areas. Belt speed can be adjusted while the tool is running, and the arm angle can be changed to suit the workpiece. It can be used for sanding wood, plastics, metals and painted or varnished surfaces.

Main technical specifications
▸ Model: PBFA 20-Li A1
▸ IAN: 496297_2504
▸ Rated voltage: 20 V
▸ No-load belt speed: 600–1700 m/min
▸ Abrasive belt size: 9 x 533 mm
▸ Sanding arm angle: -5° to 90°
▸ Sound pressure LPA: 76.3 dB(A)
▸ Sound power LWA: 84.3 dB(A)
▸ Vibration: < 2.5 m/s²
▸ Dimensions: approx. 43.2 x 12.7 x 8.7 cm
▸ Weight: approx. 960 g
▸ Battery system: PARKSIDE X 20 V Team

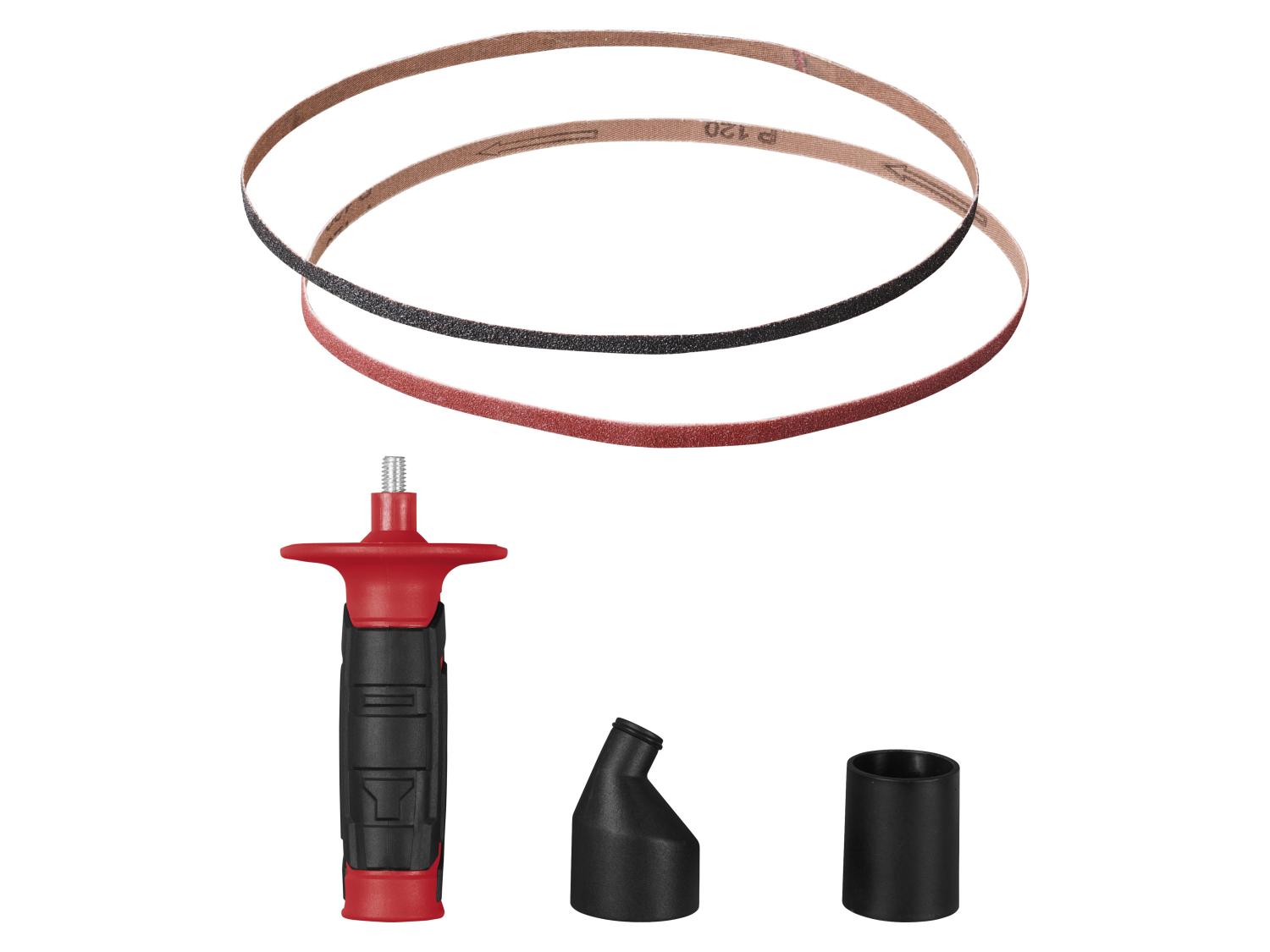

Included accessories / compatibility
▸ 1 additional handle
▸ 2 wood sanding belts, P80 and P120
▸ 2 metal sanding belts, P80 and P120
▸ 1 dust extraction adaptor and reducer

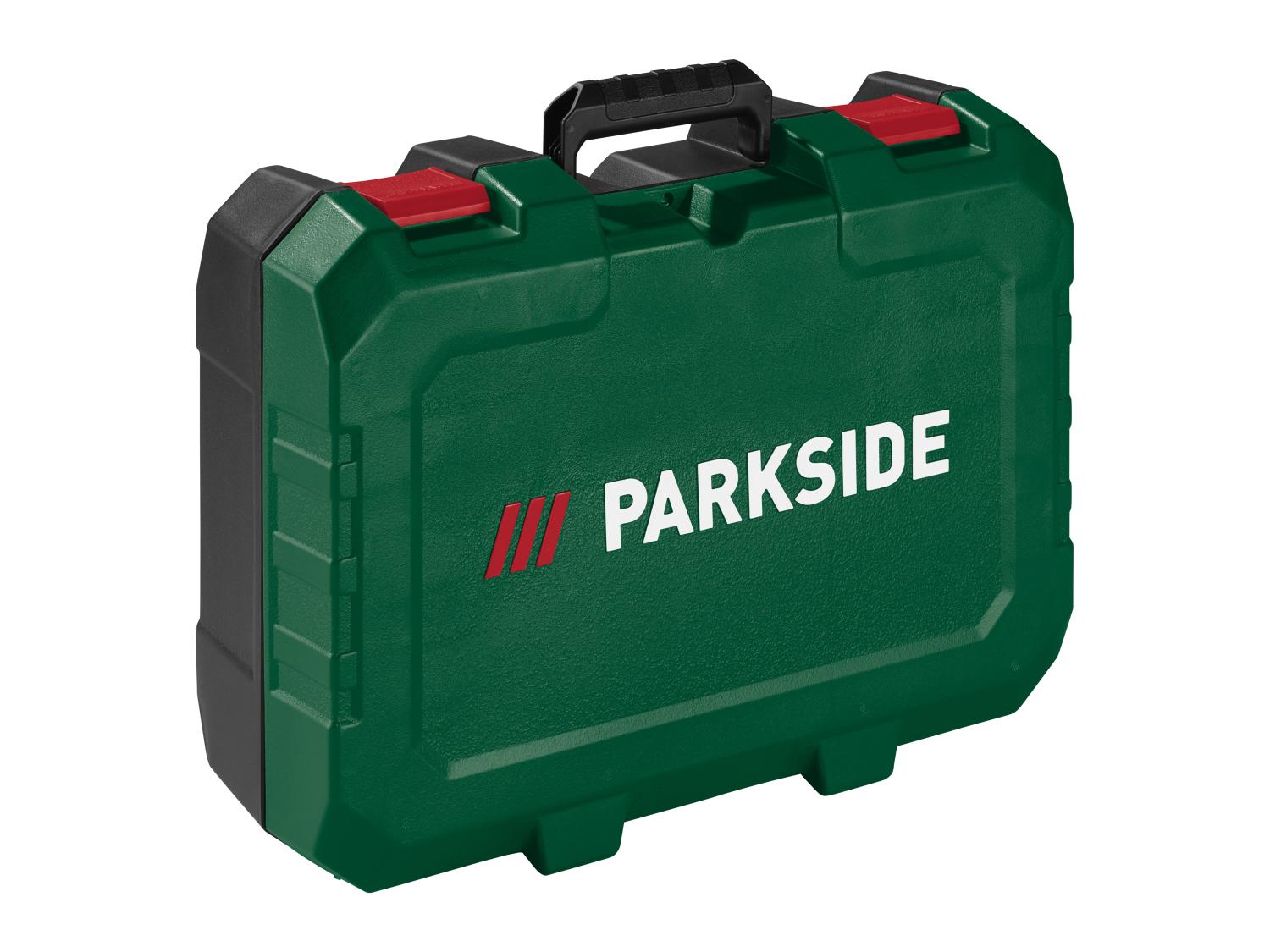

▸ 1 storage case

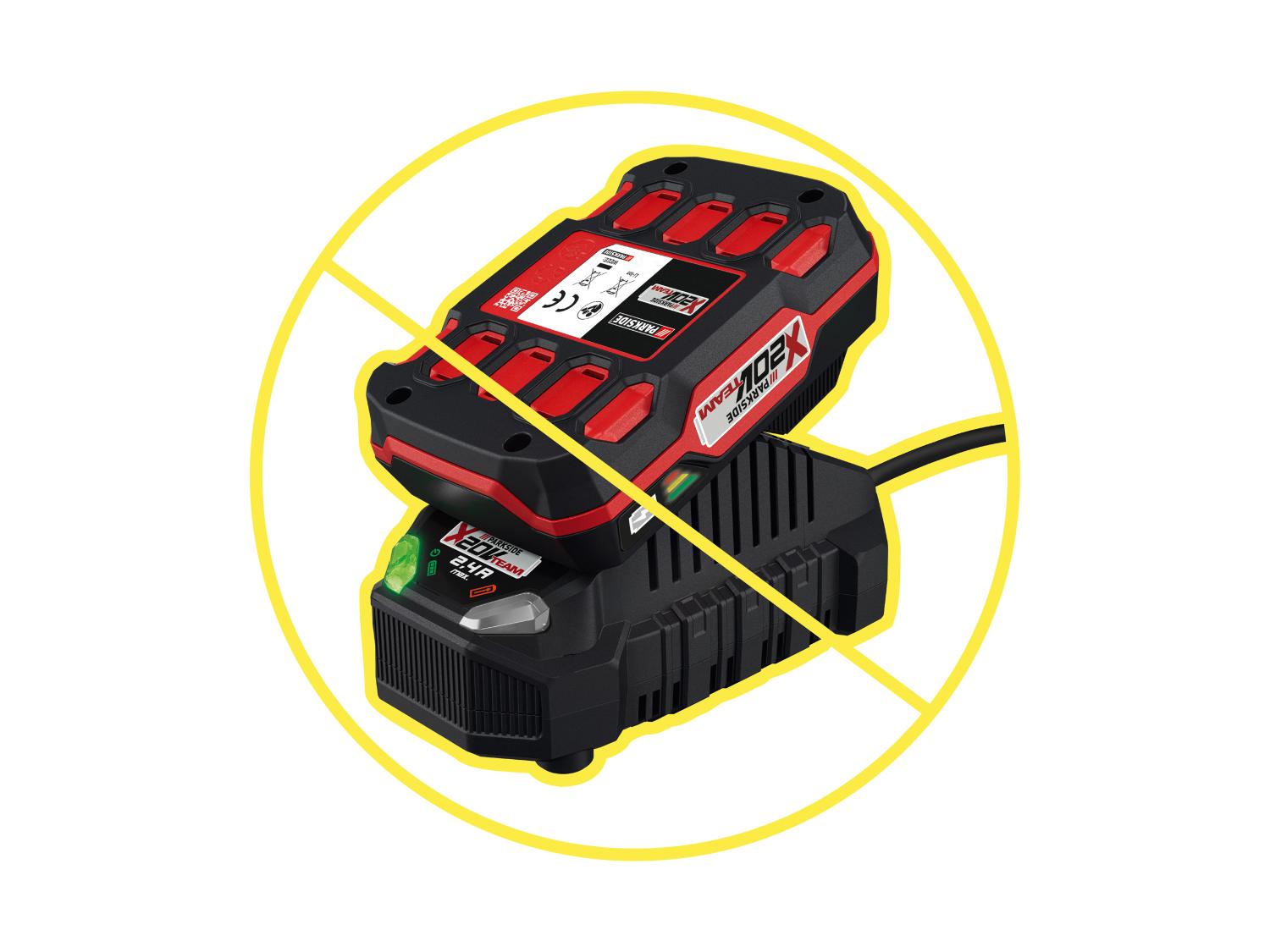

▸ Battery and charger not included
▸ Compatible with PARKSIDE X 20 V Team batteries

Who it is recommended for

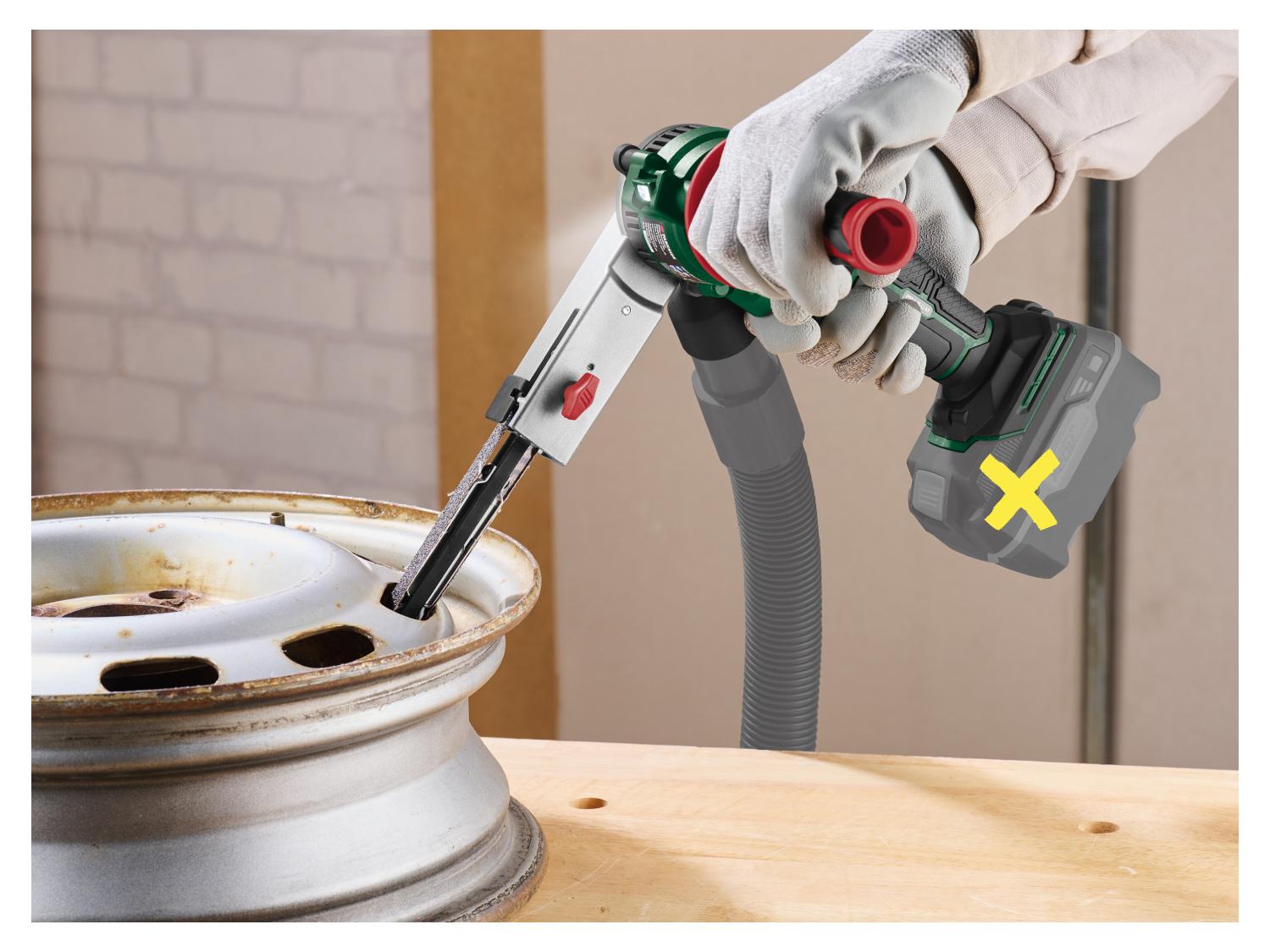

It is suitable for users who need a narrow sanding tool for edges, recesses, rust removal, detailed fabrication or places that are difficult to reach with a conventional sander. The PARKSIDE® 20V Cordless Belt Sander PBFA 20-Li A1 is particularly relevant to workshop, maintenance and DIY tasks requiring controlled material removal.

Pros and cons
Pros
▸ Wide sanding-arm adjustment range
▸ Variable belt speed for different materials
▸ Tool-free belt replacement
▸ LED work light and dust extraction connection
Cons
▸ Battery and charger are not supplied
▸ Correct belt type and grit must be selected for each material

Battery / consumables advice
A 4 Ah PARKSIDE X 20 V Team battery is recommended. Do not use the same sanding belt for both wood and metal. Worn or cracked belts should be replaced, and abrasive belts should be stored without bends or kinks that could damage them.

Objective final opinion
The PARKSIDE® 20V Cordless Belt Sander PBFA 20-Li A1 combines a narrow abrasive belt, variable speed and a highly adjustable sanding arm for detailed work. It is especially practical in confined areas, although users without an existing X 20 V Team battery will need to obtain a battery and charger separately.

FAQ
What size sanding belt does the PBFA 20-Li A1 use?
It uses 9 x 533 mm abrasive belts.

Which batteries are compatible?
It is compatible with PARKSIDE X 20 V Team batteries, with a 4 Ah battery recommended.

Can the sanding arm angle be adjusted?
Yes. It can be positioned and locked anywhere between -5° and 90°.
